The R1 Series Control Valve features several unique design characteristics that minimize wear and maximize service life.

The nozzle and external sleeve trim is designed to contain turbulence and wear by managing the flow into the nozzle and centralizing it into bore causing the flow streams to impinge on each other. The valve body and outlet are protected from wear because the energy conversion as a result of the pressure drop is concentrated in the trim cavity before flow enters the outlet. This eliminates the typical wear problems in the valve outlet.

The sleeve design greatly reduces the breakway and closing thrust requirements to lift the sleeve on and off seat as well as during stem travel making the control stable and precise yielding better accuracy and repeatability.

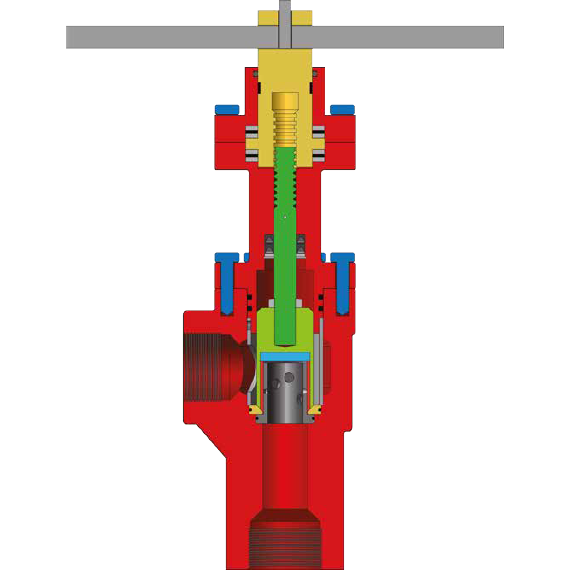

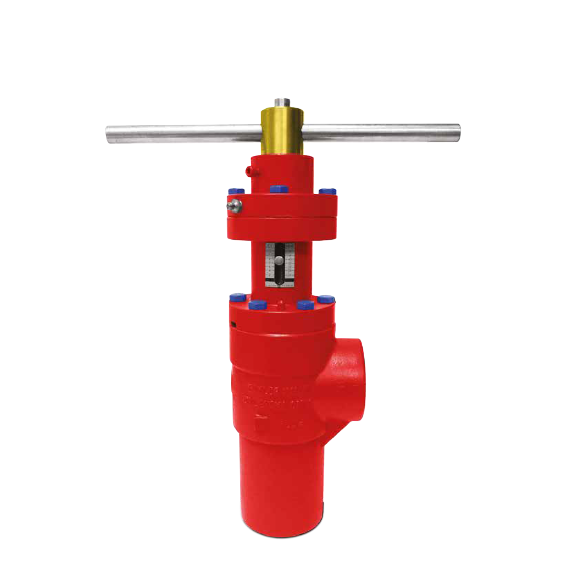

Taylor R1 Choke Valve

Specs

Connection Size
1″
Connection Type
Threaded, Flanged
Body Style
Angled
Body Material
Low Alloy (4130 LACS)
Process Fluid
Vapor
Cv
12 (Standard), 6, 3
Bean Size
47/64ths
Stroke Length
1”
Stem Diameter
0.625”
MAWP
5,000 PSIG

Features

  • Accurate Control - Multi-Orifice Nozzle design provides precise control over a wide range of flows.
  • Bolted Bonnet - A bolted bonnet prevents corrosion, cross-threading and galling of large threaded connections. The design allows for simple assembly and disassembly.
  • Extended Mean Time Between Service Robust design, application of hardened materials, and efficient flow geometry results in maximum production potential and minimum service requirements.
  • Easy Maintenance - All Control Choke Valves are designed with special actuator mounting systems so the choke can be maintained without disassembly of the actuator and components or instrument connections.
  • High Turndown Ratio - Clean flow geometry, high capacity and accurate control means the valve is suitable for both start-up and end-of field-life-process scenarios. In short, our control choke valves offer a one-valve solution for the full process life.
  • Optional Features - Control Valves can have trims and actuators custom designed for specific requirements. Such as special noise reduction trims, reduced port and maximum orifice trims for very high pressure or minimum pressure loss for a declining fie
